PCBA and System Integration

Columbia Tech is a flexible, customer-focused manufacturing resource for printed circuit board assembly. Printed circuit board assembly services are performed in a dedicated state-of-the-art, clean room facility and can be combined with Columbia Tech’s full system integration for efficient, one-stop manufacturing.



Turnkey PCB Assembly Solutions

Columbia Tech offers low to medium volume, high mix, PCBA services and end-to-end integration services for products in industries including life-science, pharmaceutical, power management, medical device, semiconductor, and alternative energy. Combined with exceptional turnkey manufacturing services, Columbia Tech is able to produce and fully integrate PCB assemblies for OEMs seeking a one-stop manufacturing solution.

One Stop Shop for PCBA and System Integration

Columbia Tech has a staff of engineers dedicated to PCB assembly; they can provide design-for-manufacturability and test (DFM/DFT) feedback to improve manufacturing and test processes, reduce the risk for defects and increase overall production yields. Columbia Tech is able to work with your existing approved vendor list (AVL) and bill of materials (BOM), or provide AVL or BOM reviews for cost-effective supply chain management. This helps ensure delivery of the best components at the right time-and at the right price point.

PCBAs are produced in a state-of-the-art, clean room facility that is equipped with best-in-class automated SMT placement, test and inspection equipment.

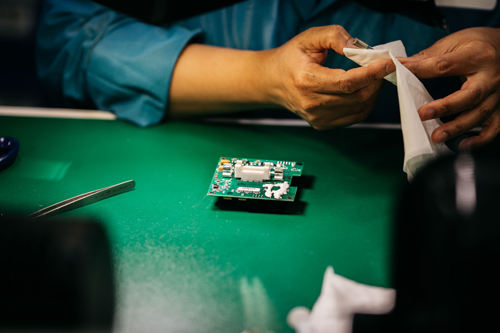

Printed Circuit Board Assembly manufacturing systme integration

Knowledgeable, experienced and well-trained assemblers at Columbia Tech’s dedicated PCBA facility can assemble complex PCBAs of virtually any size, including through-hole, double-sided surface mount, and mixed technology boards.

Capabilities include:

  • Production environment: 35,000 Sq. Ft, ISO Class 8 (100,000) clean room
  • Prototype qualifications through production volumes
  • Max board size: 20 X 24
  • Flex circuit assemblies
  • Three SMT line with 60,000 CPH capability
  • Placement capabilities:
    • 0201 passives
    • 0.3mm QFPs
    • 0.5mm BGA, CBGA, and CSPs
    • Fine-pitched SMT connectors to 15mils
    • Through-hole assembly
  • ROHS and leaded processes
  • Aqueous and no-clean processes
  • Test: ICT and functional with full tech and engineering support staff
  • IPC-A-610, IPC-A-620, J-STD-001 certified operators and trainers

All PCBAs are verified for component-placement accuracy and tested for functionality in several stages, including x-ray, automated optical inspection (AOI), in-circuit testing (ICT), and functional test services.

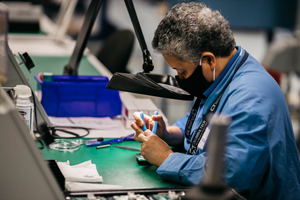

Experienced PCB Assembly Technicians Provide Reliable Results

Whether navigating the challenges of bringing a new product to market, divesting internal PCBA operations, or seeking to relocate PCBA production, Columbia Tech’s dedicated printed circuit board assembly staff has the experience required to support the needs of any customer. These associates are highly skilled and many have over twenty years of individual experience in printed circuit board assembly services. All assemblers are trained and certified to industry standards including IPC-A-610, IPC-A-620, and IPC J-STD-001 .

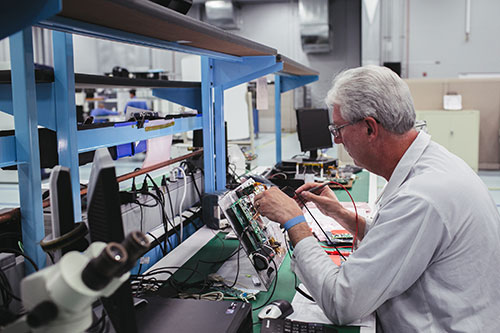

Printed Circuit Board Assembly manufacturing

The PCBA staff at Columbia Tech understands that a customer’s boards are part of a larger product. They will ensure that, once fully integrated, each PCBA will function as intended. By taking advantage of full system integration services, OEMs can achieve faster time to market with the confidence that their product is being built by experienced professionals. From PCB layout design to assembly through integration and global fulfillment, Columbia Tech is your ‘one-stop shop’ for world-class PCBA services.
